16+ Channel Online Monitoring System

A3716 16-channel online monitoring system

The A3716 is powerful online monitoring system for rotating machinery. The A3716 system can operate as an independent monitoring system or it can be used as extension of an existing protection system. The A3716 module contains 16 AC, 16 DC and 4 TACHO inputs. All channels are measured simultaneously. The A3716 modules can be easily composed together and by this we can create system with more channels.

The setting and control of A3716 is done in DDS software. The setting has never been easier. The only thing you need to do is to create the tree of machines, measurement points,required readings and assign them to appropriate channels. Then you just press START and the readings are done automatically.

Adaptive Algorithm of Data Acquisition see more

A3716 16-channel online monitoring system

Key Features

  • Adaptive algorithm of data acquisition
  • 16 channels AC
  • 16 channels DC
  • 4 TACHO inputs
  • 16 BNC buffered outputs of signals from sensors
  • 16 programmable relays outputs

Application Scheme of A3716 Units

A3716 application scheme

Technical Specifications

Input channels AC:
16 x AC, ICP® power supply on/off
input impedance 100kΩ
integration single, double
high pass filter 1 Hz - 12800 Hz
low pass filter 25 Hz - 25600 Hz
Input channels DC:
16 x DC for process values
input impedance 100 kΩ (VDC), 250 Ω (mADC)
TACHO inputs:
4 independent TACHO for speed probe / external trigger
speed range 0,8 Hz - 1000 Hz
Input range:
AC +/- 12 V peak-peak
DC +/- 24 V or 4 - 20 mA
TACHO +10V
AD conversion:
24 bit, 64 bit double floating point internal signal processing
No AutoGain function!
Dynamic range S/N:
120 dB
Frequency ranges:
max. 25,6 kHz (16 Ch, 65,5 kHz sampling)
Sampling mode:
Fully simultaneous for 16 channels
FFT resolution:
Min. 100 lines
Max. 25 600 lines
Processor:
Intel Core2 - 2.5 GHz
Memory RAM:
4 GB
Internal hard drive:
SSD 128GB
Data acquisition:
Overall values
Time signals
FFT real time analysis
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
order analysis
user band pass analysis
RPM measurement
DC measurement
Orbit measurement
Speed measurement
Signal Recorder:
64 kHz sampling frequency
4 Ch memory consumption 3 GB/hour
Trigger:
free run, TACHO, external (voltage)
Communication:
Ethernet 1GB RJ45
Temperature range:
-10˚C to +50˚C
Power:
AC 110 - 240 V, 45 - 65 Hz
Case:
19´´aluminium rack
Size & Weight (2U):
430 x 360 x 90 mm
4,7 kg
Size & Weight (3U)
430 x 360 x 135 mm
6,2 kg

Data Sheets & Manuals

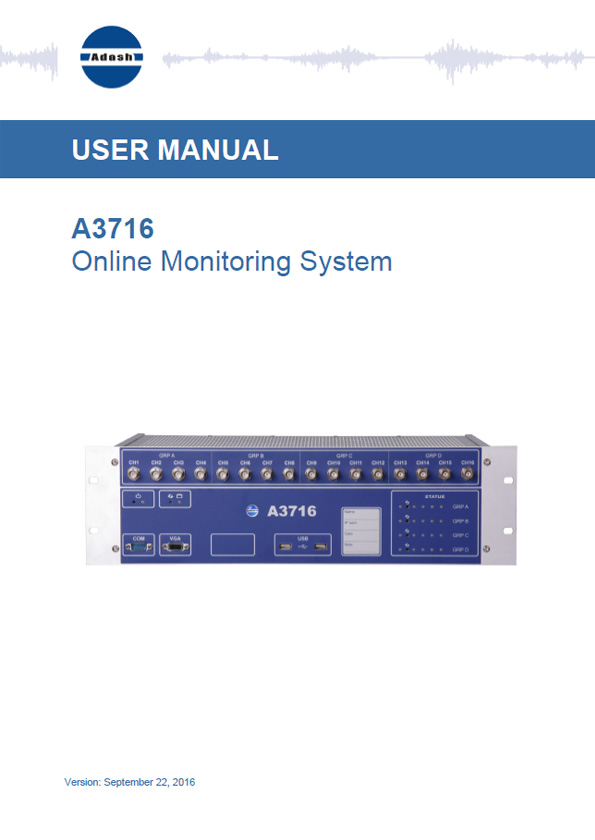

Manual A3716 online manual

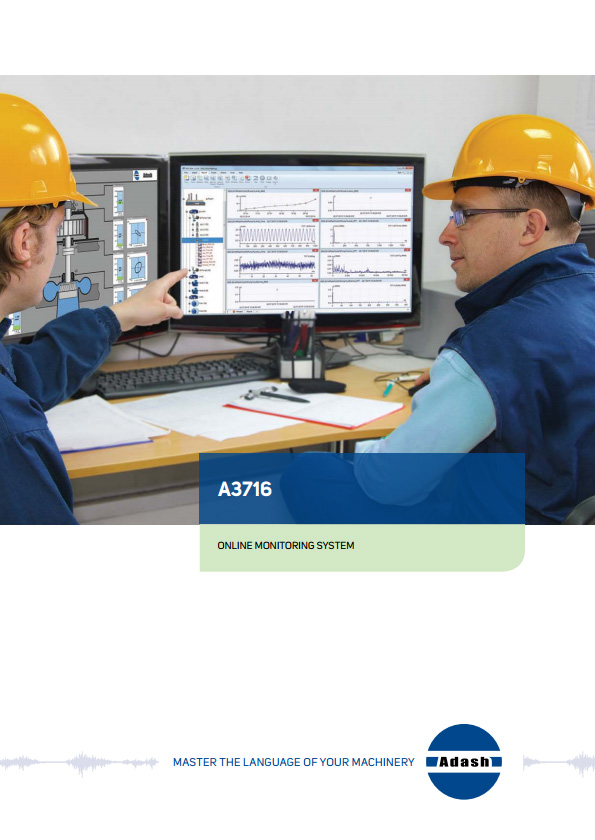

Data sheet
