Á4802 Sensor Simulator

SENSOR SIMULATOR

Quick measurement system inspection

Simulates acceleration sensor

generates stable signal

Check ANY vibration meter / analyzer

do they measure precisely?

Inspect cables and connectors

be sure about smooth data transmission

BE SURE YOU MEASURE CORRECTLY

Sensor Simulator

A4802 Sensor Simulator with Vibrio A4900

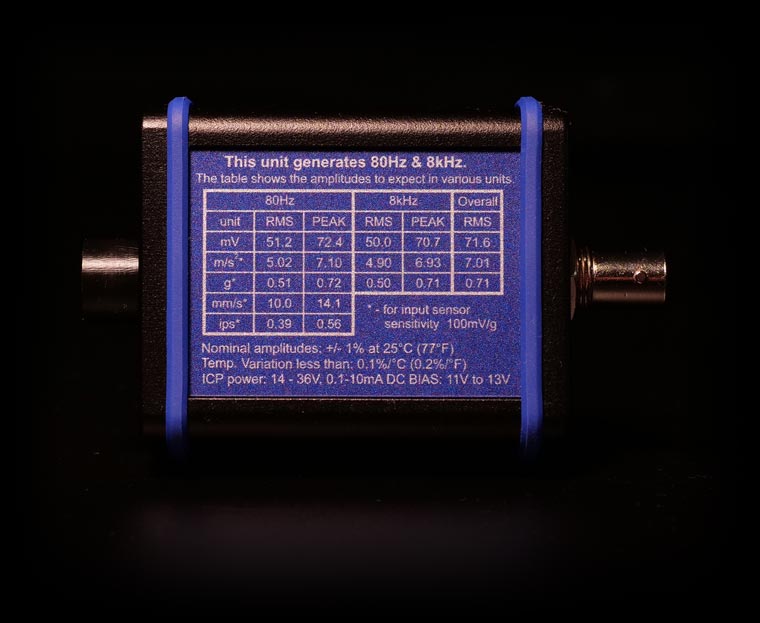

Connect any vibration meter or analyzer to A4802 Sensor Simulator and check whether it measures correctly. The Sensor Simulator generates stable voltage signal on 80 Hz and 8 kHz. Setup your device to 100 mV/g input sensor sensitivity and you should see value of 10 mm/s in velocity measurement and 0.5 g in acceleration measurement.

DO WE HAVE A CONTACT?

A4802

A4802 Adash Sensor Simulator
A4802 Adash Sensor Simulator
A4802 Adash Sensor Simulator
A4802 Adash Sensor Simulator
Sensor simulator is a great help for measurement systems cables and connectors inspection. There is a trouble if the LED indication blinks while you are stressing the cable or its connectors. It is a sign of bad connection between analyzer and Sensor Simulator.

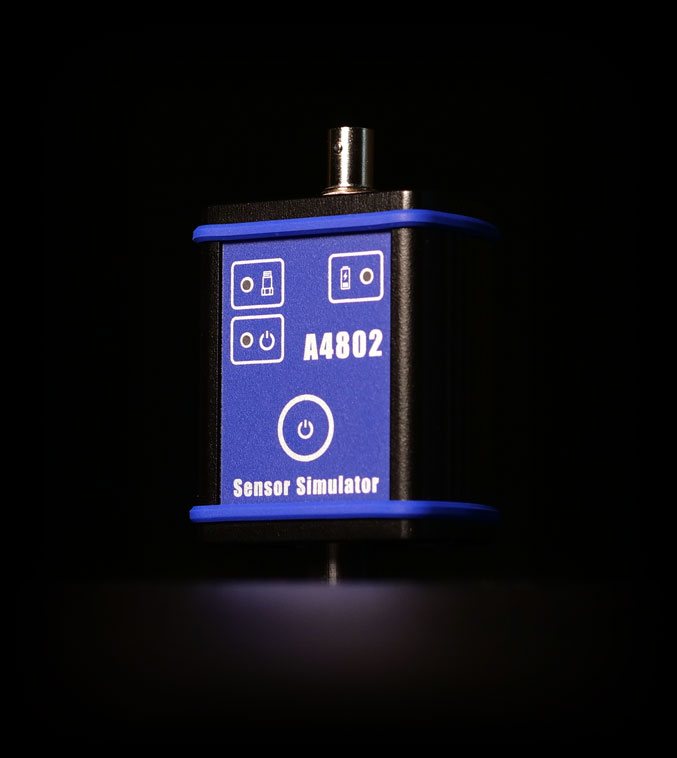

A4802 Sensor Simulator
A4802 Sensor Simulator Adash
MIL2 and BNC connection
Stable signal on 80 Hz and 8 kHz
Battery operated / USB charged
Compact size
