VIBRIOM

Vibration Meter, Analyzer and Data Collector in One

Predictive Maintenance based on condition monitoring starts here.

Expert System

automatic machine fault detection

Plug and Play

don’t bother with settings, just measure

WHERE TO BUY?

Vibrio
How to start predictive maintenance ALL YOU NEED TO KNOW TO BEGIN predictive-maintenance-point.com

MAINTENANCE SWISS ARMY KNIFE

Vibrio M

FFT, Time Waveform
Acceleration, Velocity, Displacement
ISO 20816 standards
16 hours of operation

IR thermometer
Stethoscope
Memory / USB-C communication
LED Stroboscope

VIBRIO M MEASUREMENTS

All predefined

Overall values - rms

Velocity for whole machine body vibrations
Acceleration for bearing vibrations

Automatic speed detection

Overall values - peak

Velocity for whole machine body vibrations
Acceleration for bearing vibrations

Spectrum

FFT analysis of vibrations
3 max peaks detection

Time signal

Time waveform for a bearing shocks observation

Demodulation – Envelope value

Frequency Bands

3 frequency bands for highest acceleration signal detection

Displacement

Overall RMS and Peak measurement of vibration displacement

Temperature

Contactless temperature measurement in Celsius and Fahrenheit degrees

FASIT (Fault Source Identification Tool)

Automatic detection of:
Unbalance
Looseness
Misalignment
Bearing condition

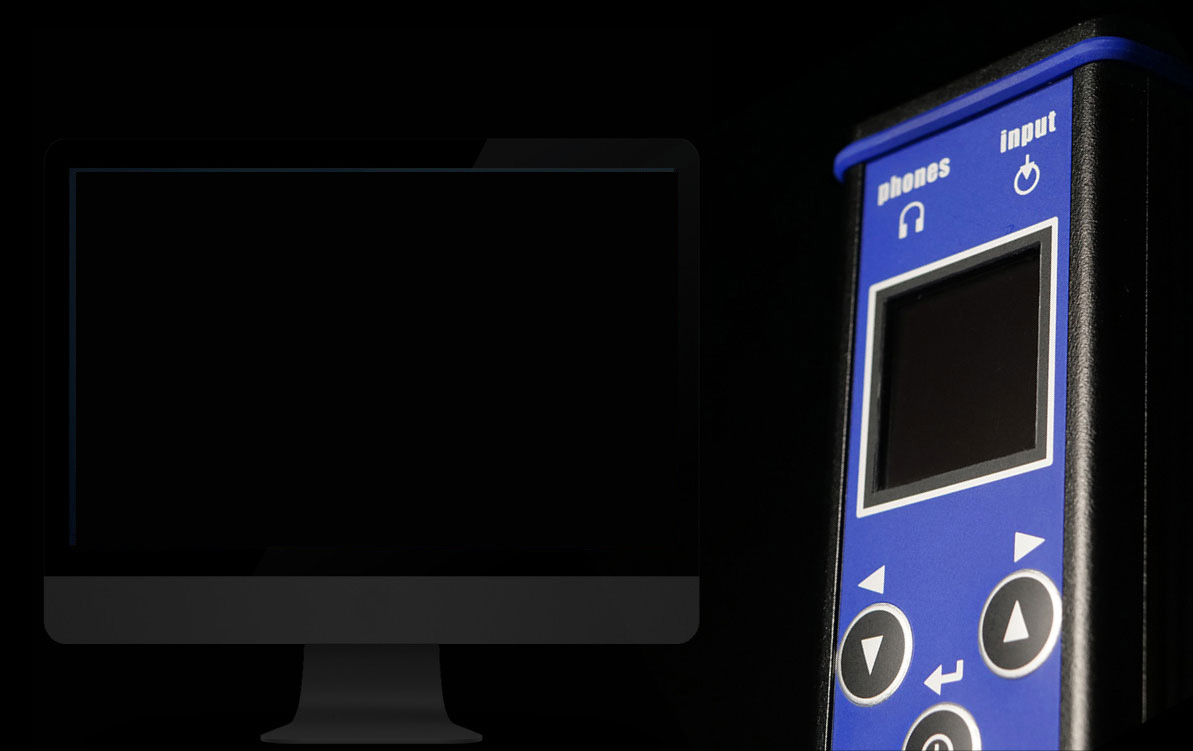

VIBRIO M + free DDS SOFTWARE

Free trending and data analysis software

Collect & Import

Vibrio M along with free DDS software is the easiest start of your predictive maintenance program based on machinery condition.

Collect the data with Vibrio M regularly and import them into DDS software. Follow vibration trends and observe the actual condition of your machines.

DDS DOWNLOAD

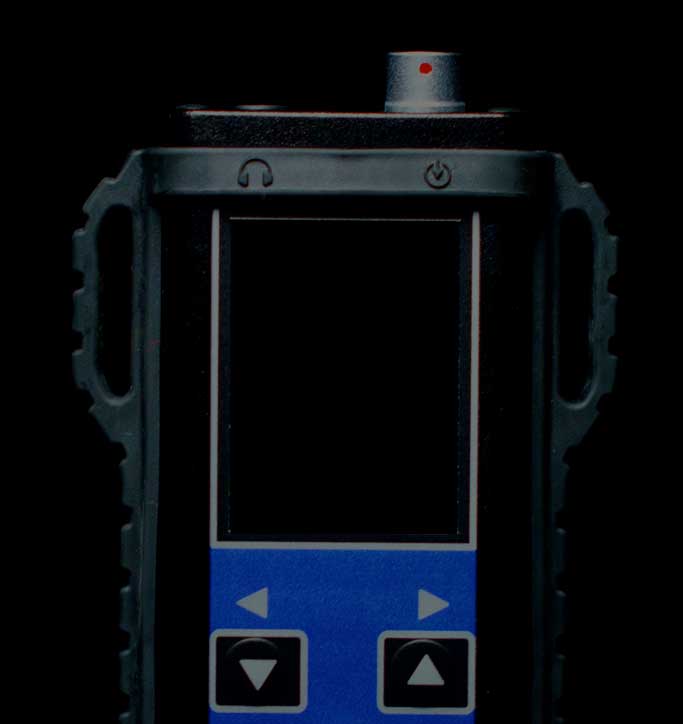

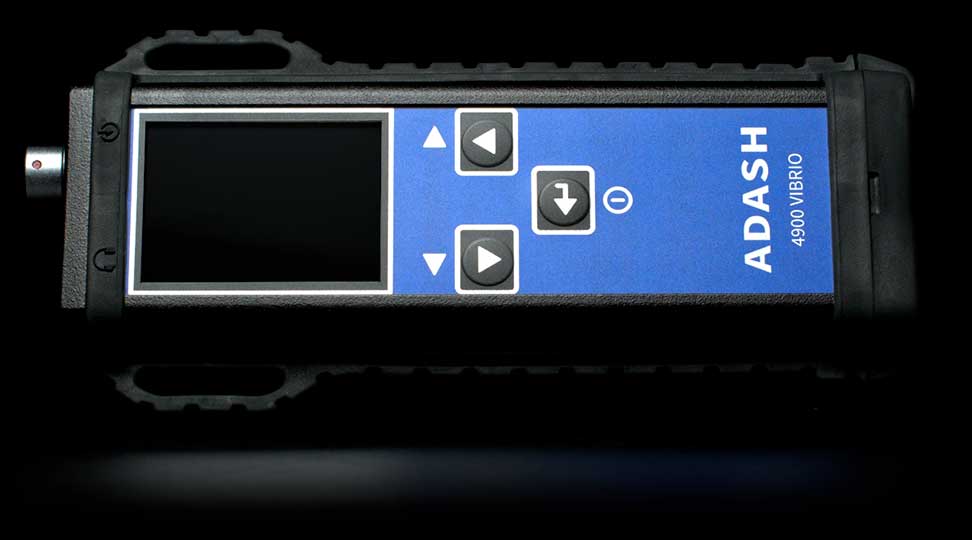

UNIVERSAL AND TOUGH

Ready for industry

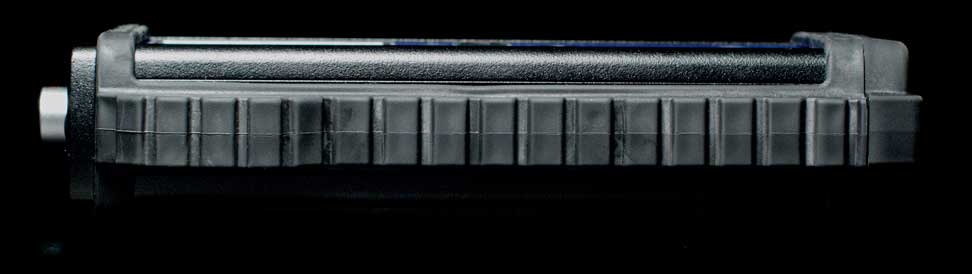

Heavy duty casing
with rubber protection bumper
LED flashlight
Direct measurement from
proximity probes (optionally)

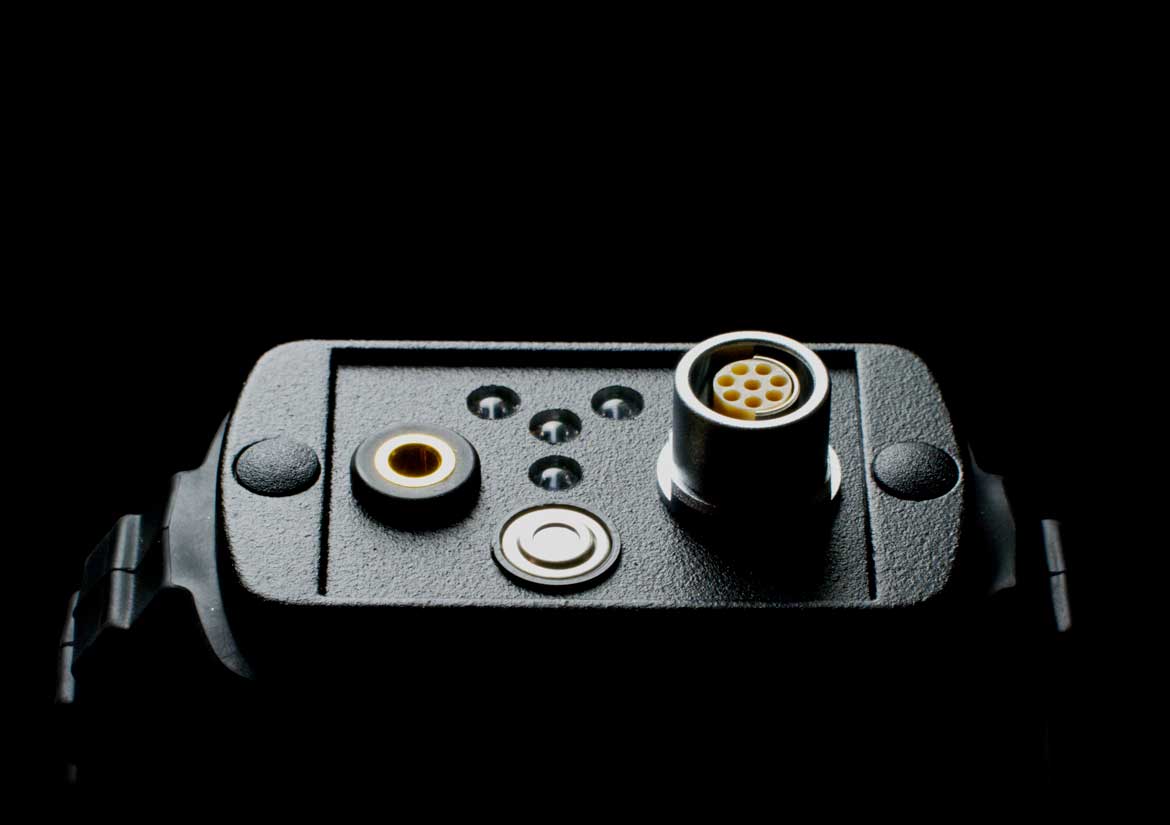

Unbreakable connector
USB-C data transfer
3.5 Jack

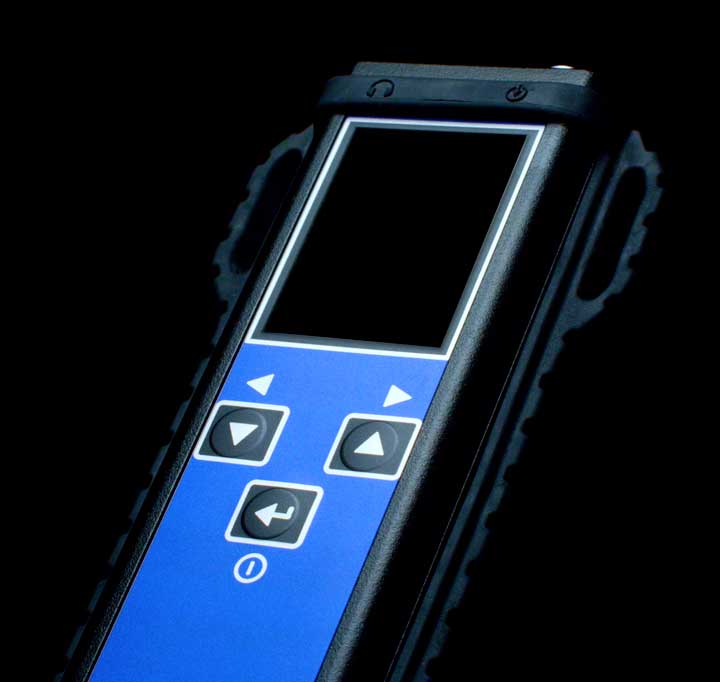

3 buttons operation

WHERE TO BUY?

Technical specifications

Vibrio M specifications

Input:

1 x ICP® powered accelerometer

Input range:

60 g PEAK with standard 100 mV/g sensor
e.g. 600 g PEAK with 10 mV/g sensor (sensitivity is adjustable in the device)

Measurements:

Velocity RMS: 10 - 1 000 Hz [mm/s, ips]
Velocity Peak: 10 - 1 000 Hz [mm/s, ips]
Acceleration RMS: 500 Hz - 16 000 Hz [g]
Acceleration Peak: 500 Hz - 16 000 Hz [g]
Velocity time: 1 - 1 000 Hz [mm/s, ips], 2048 samples
Velocity spectrum: 1 - 1 000 Hz [mm/s, ips], 800 lines
Acceleration time: 1 - 16 000 Hz [g], 2048 samples*
Acceleration spectrum: 1 - 16 000 Hz [g], 800 lines*
Acceleration Demod-Envelope RMS: 500 - 16 000 Hz [g]
Acceleration Demod-Envelope Peak: 500 - 16 000 Hz [g]*
Acceleration Demod-Envelope time: 500 - 16 000 Hz [g], 2048 samples
Acceleration Demod-Envelope spectrum: 500 - 16 000 Hz [g], 800 lines, range 400 Hz*
Displacement RMS: 2 - 100 Hz [µm, mil]
Displacement 0-Peak: 2 - 100 Hz [µm, mil]
Displacement Peak-Peak: 2 - 100 Hz [µm, mil]

* available in DDS software for Vibrio

IR temperature measurement:

From -70˚C to +380˚C (-94˚F to +716˚F)

Other functions:

LED stroboscope (0.17-300 Hz, 10 - 18 000 RPM)
LED torch
Stethoscope for listening machine (bearing) noises

Memory:

4 MB for data:
120960 overall values
or 900 measurements of 800 line spectra
or 2048 sample time signals

Data storing:

Off-Route Route with DDS software (free download)

Interface:

USB 3.0, 2.0 compatible

Software:

Free version of DDS software (limited database size)

Display:

Colour graphic TFT display 240x320 pixels, sunlight readable

Output:

1 x AC signal 8 Ω / 0,5 W for external headphones
(signal listening)

Power:

rechargeable Li-Ion battery, 16 hours of continuous operation

Temperature:

Operating: -5°C to 55°C

Dimensions:

170 x 85 x 38 mm

Weight:

380 g (without cable, sensor and magnet)
590 g including cable, sensor and magnet

Accessories:

vibration sensor, coiled cable to connect vibration sensor, magnetic base for vibration sensor, headphones with 3.5 mm jack, USB cable, measuring tip for manual pressure on the sensor, transport case, USB flash drive with the manual
