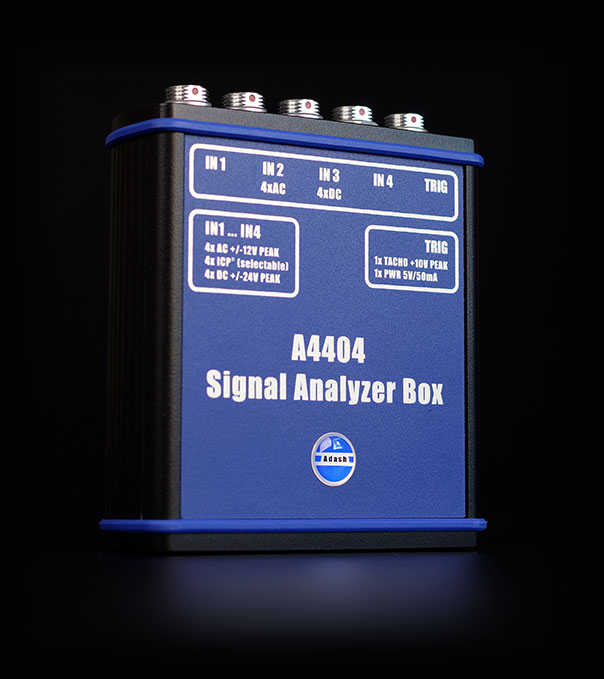

4-Channel Pocket Size Vibration Analyzer

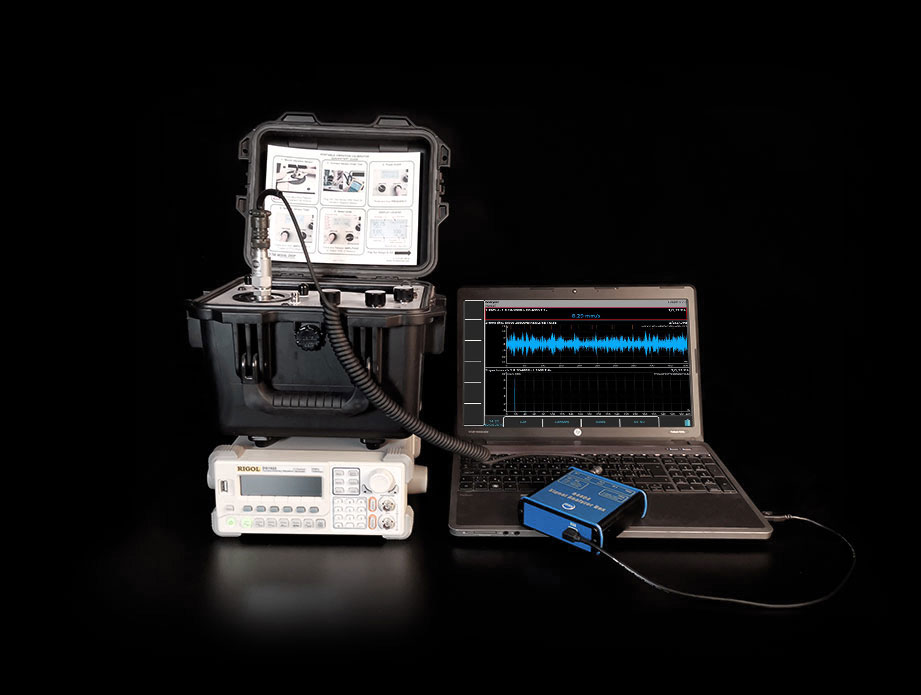

The A4404 SAB (Signal Analyzer Box) is a pocket size 4 channel vibration analyzer. Connect the A4404 SAB to any computer by USB and use the unit for data analysing, collecting and the recording of vibration signals. The instrument is powered directly by USB connection so no external power is needed.
The A4404 SAB is ideal for traveling and for teaching purposes.
Install free Virtual Unit software to your computer to get all the functions of A4400 VA4 Pro II analyzer.
Free Virtual Unit software
- Small and light pocket vibration analyzer
- No batteries needed (powered from the PC)
- Memory size depends on the PC
- Ideal for traveling and for teaching purposes
A4404 SAB Modules
MAIN MENU - Measuring modules
FASIT (Expert System)
ADS (Operating Deflection Shapes)
Select the type of the measurement (from simple overall values through FFTs and time signals to more advanced measurements with Proximity probes such as Orbits), set up the measurement settings according to your requirements (frequency range, sampling, units etc.) and take all the predefined measurements simultaneously.
Route module is used for day to day data collection of your factory machinery. Simply create your route tree with measurement points location in DDS software and take the measurements regularly. Transfer collected data to DDS software to watch the trends and analyze the data.
Similar to Analyzer mode where you can setup any measurement which you like. RunUp allows you to control the saving of data for example as soon as possible, or by speed change, time change etc.
Unique measurement mode with unappreciated value. Recorder “records” the raw signal from the sensor, means raw signal from the machine. This allows to make a post processing of the signal later on your PC. You can play this record again and again and apply any measurement setting to it.
Balancer allows you to perform one or two plane balancing job of rotating parts such as industrial fans, blowers, spindles etc.
FASIT - Expert system
FASIT (Fault Source Identification Tool) is an expert system for automatic detection of possible machine faults:
- Bearing faults
Do not use a screw driver to listen your bearing noise anymore. Place the sensor on the bearing house and listen the machine / bearing noise in headphones. VA4 Pro enables to listen signals from 4 channels. Just switch between individual channels. Adjust the volume according to your needs.
Lubri is a maintenance tool used for monitoring and control of the lubrication process. Lubri measures the actual bearing lubrication status and informs the operator when the lubrication state is optimal.
Octave analysis allows you to measure hearable sound. Connect your ICP microphone and measure sound level and Octave spectrum with selectable 1/1, 1/3, 1/12, 1/24 resolution.
Easy way how to measure structure resonance frequencies. No need of any settings, just place the sensor on the structure and hit it with appropriate hammer.
ADS - Animated deflection shapes software is based on the method of operating deflection shapes. This means we visualize the vibrations of certain machine by animation. During the animation the vibration movement is slowed down to very low frequency and the amplitude of the motion is increased so we can see the vibration. You can animate the machine motion directly on the VA4 Pro device!
Measurement of sound unhearable for human ear – ultrasound. Typical application is air leak detection, electrical arcing or early bearing fault detection.
- Input channels:
- 4 x AC, ICP® power supply on/off
4 x DC for process values
1 x TACHO for speed probe / external trigger
- Input range:
- AC +/- 12 V peak-peak
DC +/- 24V
- AD conversion:
- 24 bit, 64 bit internal signal processing
No AutoGain function!
- Dynamic range S/N:
- 120 dB
- Frequency ranges (-3 dB):
- Maximum range: 0.35 Hz - 90 kHz (1 Ch, 194 kHz sampling)
Maximum range: 0.35 Hz - 25 kHz (4 Ch, 64 kHz sampling)
Minimum range: 0.35 Hz - 25 Hz (4 Ch, 64 Hz sampling)
- Sampling mode:
- Fully simultaneous for 4 channels
- FFT resolution:
- Min. 100 lines
Max. 3 276 800 lines
- Measurement modes:
- Analyzer - analytical measurements
Data collector - route measurements
Balancer - 1 and 2 plane on site balancing
Recorder - raw signal recording for later post analysis
Stethoscope - listening of the bearing/machine noise
FASIT - expert system for automatic fault detection
Octave analyzer - hearable sound measurement
Bump test - measurement of natural frequencies
ADS - Animated Deflection Shapes (Operating deflection shapes)
Ultrasound - measurement of ultrasound in 30 - 50 kHz range
- According to the PC
- Memory, Route:
- According to the PC hard drive
- Data processing:
- Real time FFT
DEMOD - ENVELOPE analysis
ACMT - low speed bearing analysis
User band pass analysis
- Signal recorder:
- 3 GB/hour of memory consumption with 64 kHz sampling frequency measured on all 4 Channels
- Manual, External, Signal level, Time
Use for signal recording trigger
Speed change, Time interval
- USB 3.0, 2.0 compatible
- Temperature range:
- -10˚C to +50˚C
- USB powered
- Aluminium - heavy duty
- Size & Weight:
- 110 x 115 x 35 mm, 350 g
- Minimum PC requirements:
- CPU : Intel Atom 1.66GHz
RAM: 1GB RAM
USB full speed 1.1 or 2.0
