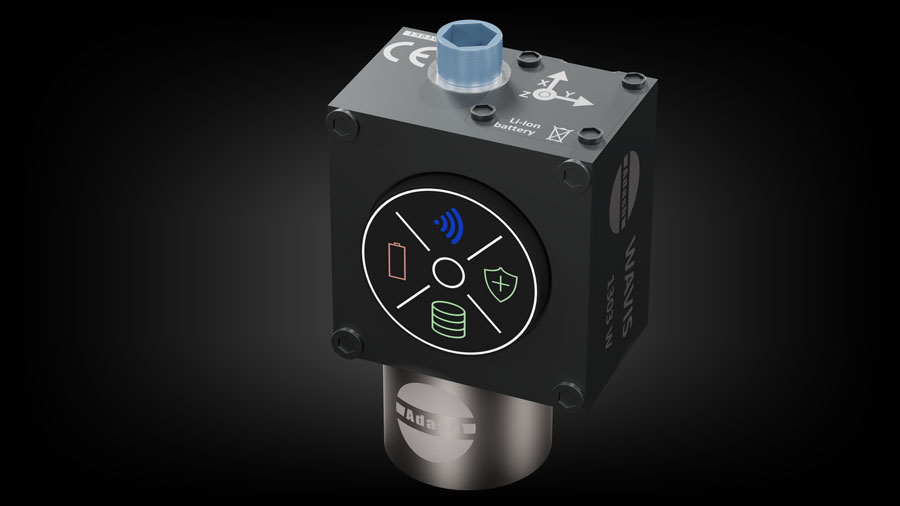

WAVIS - wireless vibration sensor

WAVIS

Wireless Portable Solution

Triaxial wireless sensor

real time vibration measurement

Measure safely

measure dangerous equipment from safe distance

Compatible with VA5

most powefull Adash analyzer

Technical specifications

WAVIS specifications

Acceleration sensor for Z direction

Range maximum:

± 50 g

Frequency band:

0 ÷ 15 kHz

Noise level:

up to 25 μg/√Hz for ± 50 g range

Acceleration sensor for X, Y direction

Range maximum:

± 16 g

Frequency band:

0 ÷ 6.4 kHz

Noise level:

up to 75 μg/√Hz for ± 2 g range

Wireless communication interface

Standard:

IEEE 802.11 b/g/n Wi-Fi, WPA2

Frequency range:

2.4 to 2.4835 GHz

Transmit power:

19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n

Working and storage conditions

Range:

up to 15 meters

Battery life in standby:

8 hours

Battery life while measuring:

3 hours

Operating Temperature:

-10 to +70°C

Humidity:

10 – 100% RH

Degree of protection:

IP67, dustproof housing, resistant to immersion in water

Dimensions and weight

Dimension:

40 x 42 x 27 mm (SxWxG)

Weight:

110 g
