Sometimes it is difficult to detect a machine defect from FFT or time wave patterns. To confirm or discover machine fault we can use Operating Deflections Shapes measurement method which simply visualize machine movement. Create a machine structure according to the real look of the machine in ADS software, perform necessary measurement and start the animation.
RUN THE ANIMATION ON SITE
Operating deflection shapes

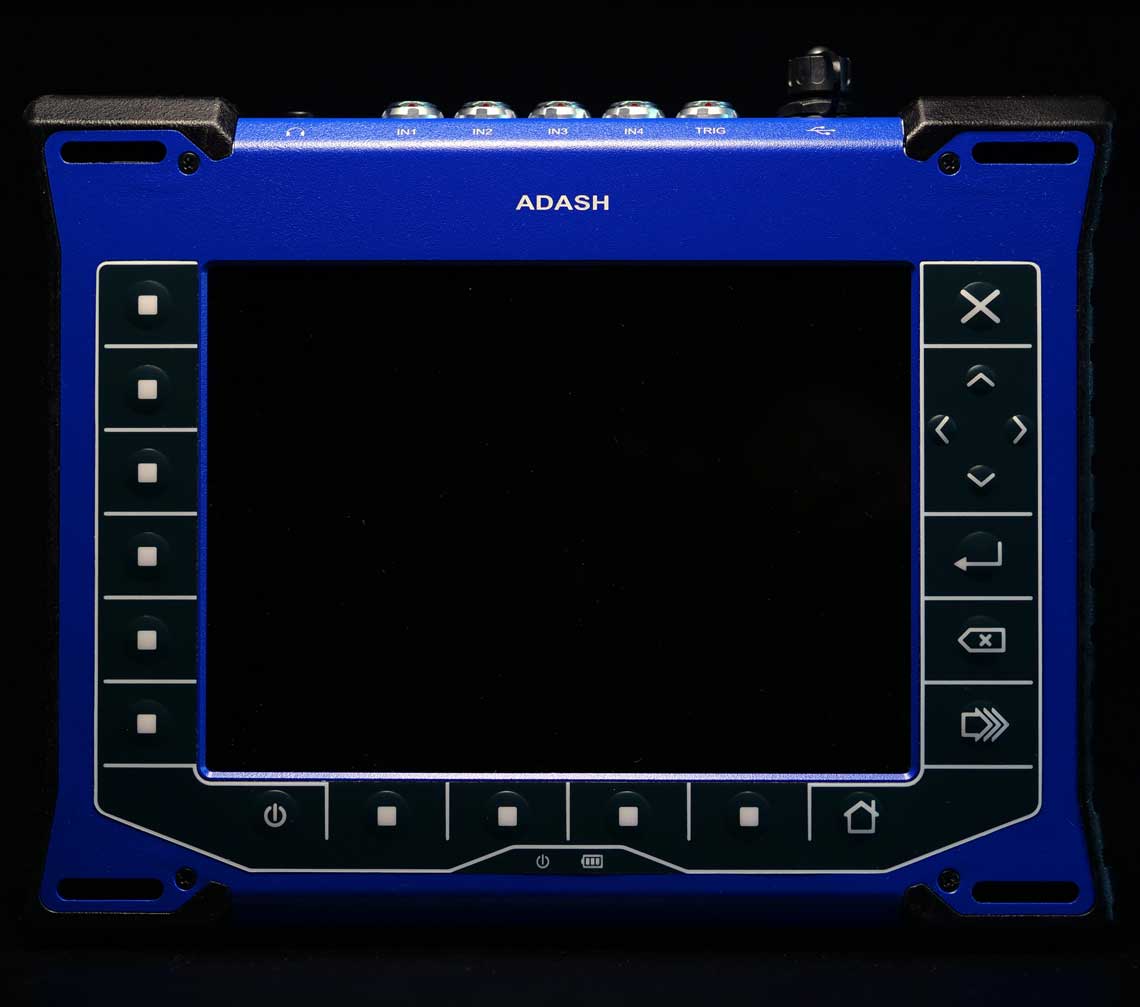

The ADS can work with any vibration analyzer which can measure amplitude and phase or has the FRF measurement possibility. But ideally you would like to use it with Adash VA5Pro or VA4Pro where you can run the animation directly on the device!
